Texas Instruments TPS78218DDCR LDO Voltage Regulators
150-mA, nano-IQ, low-dropout voltage regulator with enable from -40°C to +125°C 5-SOT-23-THIN -40 to 125
Same model may have multiple batches, images only for reference.
Manufacturer
Part Number (MPN)
TPS78218DDCR
Detailed Description
Advanced Texas TPS78218DDCR LDO for precision electronics.
Package
SOT-23-5
Lifecycle Status
Active
RoHS State
RoHS Compliant
Datasheet
TPS78218DDCR Datasheet
Quick Jump:
Technical Specifications
Texas Instruments TPS78218DDCR LDO Voltage Regulators technical specifications.
General
RoHS
Compliant
Number of Pins
5
Package / Case
SOT-23-5 Thin, TSOT-23-5
Packaging
Tape & Reel
Mounting Type
Surface Mount
Operating Temperature
-40°C ~ 125°C
Lifecycle Status
Production
Manufacturer Lifecycle Status
ACTIVE
Package
SOT-23-5
Weight
15.790684 mg
Alternate Parts Comparison (TPS78218DDCR vs TPS54292PWP vs TPS79912QDRVRQ1 vs TPS79925QDDCRQ1)
Side-by-side technical parameter comparison of related primary models in this product family.
| This Part | Alternate Parts | Alternate Parts | Alternate Parts | |
|---|---|---|---|---|
| Package / Case | SOT-23-5 Thin, TSOT-23-5 | 16-PowerTSSOP | 6-WDFN Exposed Pad | SOT-23-5 Thin, TSOT-23-5 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C (TA) | -40°C ~ 125°C | -40°C ~ 125°C |
| Number of Pins | 5 | 16 | 6 | 5 |
| RoHS | Compliant | Yes | Yes | Yes |
| Max Input Voltage | 5.5 V | 18V | 6.5V | 6.5V |
| Number of Outputs | 1 | 2 | 1 | 1 |
| Output Configuration | Positive | Positive | Positive | Positive |
| Output Current | 150 mA | 1.5A, 2.5A | 200mA | 200mA |
| Output Type | Fixed | Adjustable | Fixed | Fixed |
| Output Voltage | 1.8 V | 0.8 to 14V | 1.2V | 2.5V |
| Package | SOT-23-5 | HTSSOP EP | WSON EP | TSOT-23 |
| Action |
More Parts in Voltage Regulators - Linear
Browse additional parts from the same category, grouped by series, package type, and manufacturer. These are catalog suggestions — not verified pin-compatible alternates.

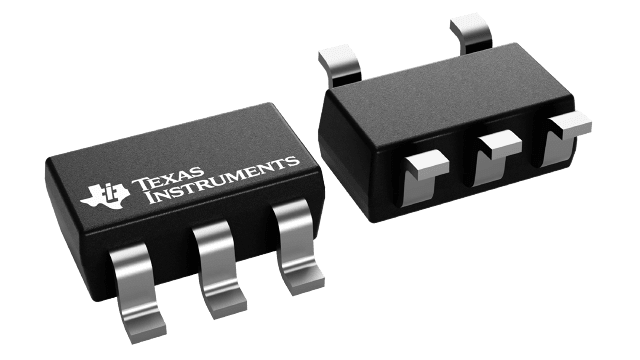

TPS72301DDCRTexas Instruments200-mA, negative, adjustable low-dropout voltage regulator with enable 5-SOT-23-THIN -40 to 125
