Texas Instruments TLV73310PDBVT LDO Voltage Regulators

IC REG LINEAR 1V 300MA SOT23-5

99,999 ActiveTexas InstrumentsTLV73310PDBVSOT-23-5$0.15RoHS
TLV73310PDBVT SOT-23-5 package illustration

Same model may have multiple batches, images only for reference.

TLV73310PDBVT
Manufacturer
Texas Instruments
Part Number (MPN)
TLV73310PDBVT
Category
Integrated Circuits (ICs)Power Management ICsVoltage Regulators - Linear
Base Model
TLV73310PDBV
Detailed Description
300mA, capacitor-free, low-IQ, low-dropout voltage regulator with enable. Features 1% accuracy, 122mV dropout voltage, and a fixed 1V output. Operates from a 1.4V to 5.5V input range with a maximum output current of 300mA. This positive output regulator is housed in a 5-SOT-23 surface mount package, offering a wide operating temperature range of -40°C to 125°C. RoHS compliant and lead-free.
Package
SOT-23-5
Lifecycle Status
Active
RoHS State
RoHS Compliant
Datasheet
PDF TLV73310PDBVT Datasheet
Quick Jump:
Ready to order?In stock and ready to ship.
Competitive Pricing
Fast & Reliable Delivery
Quality Assured

Ordering Code Family

TLV73310PDBV groups multiple orderable suffixes under one base device. Compare package, grade, and reel options on the base-number page before substituting within the family.

2 ordering variants listed on the family page.

View all variants

Technical Specifications

Texas Instruments TLV73310PDBVT LDO Voltage Regulators technical specifications.

General

RoHS
Yes
Package / Case
SC-74A, SOT-753
Mounting Type
Surface Mount
Operating Temperature
-40°C ~ 125°C (TJ)
Supply Voltage
1.4V ~ 5.5V
Lifecycle Status
Active
Accuracy
1%
Package
SOT-23-5
Voltage Dropout
122mV
Height
1.45mm

Related Parts Comparison (TLV73310PDBVT vs TLV73310PDBVR vs TLV2772ID vs TLV2241IDBVT)

Side-by-side specifications of related catalog parts.

Engineering verification required. Related parts may have different electrical ratings, pinouts, footprints, and operating limits. Verify suitability for your circuit before substitution.

This PartRelated PartRelated PartRelated Part
Texas InstrumentsTLV73310PDBVT
Texas InstrumentsTLV73310PDBVR
Texas InstrumentsTLV2772ID
Texas InstrumentsTLV2241IDBVT
Package / CaseSC-74A, SOT-753SC-74A, SOT-7538-SOICSC-74A, SOT-753
Mounting TypeSurface MountSurface MountSurface MountSurface Mount
Operating Temperature-40°C ~ 125°C (TJ)-40°C ~ 125°C (TJ)-40°C ~ 125°C (TA)-40°C ~ 85°C
RoHSYesYesYesYes
Lifecycle StatusActiveActiveActiveActive
Output Current300mA300mA50mA200uA
Output TypeFixedFixedRail-to-RailRail-to-Rail
PackageSOT-23-5SOT-23 (DBV)-5DSOT-23
Supply Voltage1.4V ~ 5.5V--3V6V
Height1.45mm--1.58mm1.15mm
Lead FreeLead Free--Lead FreeLead Free
Length3.05mm--4.9mm2.9mm
Action
RFQ
RFQ
RFQ
RFQ

Texas Instruments TLV73310PDBVT LDO Voltage Regulators Overview

300mA, capacitor-free, low-IQ, low-dropout voltage regulator with enable. Features 1% accuracy, 122mV dropout voltage, and a fixed 1V output. Operates from a 1.4V to 5.5V input range with a maximum output current of 300mA. This positive output regulator is housed in a 5-SOT-23 surface mount package, offering a wide operating temperature range of -40°C to 125°C.

RoHS compliant and lead-free.

More Parts in Voltage Regulators - Linear

Browse additional parts from the same category, grouped by series, package type, and manufacturer. These are catalog suggestions — not verified pin-compatible alternates.
TLV73310PDBVRTLV73310PDBVRTexas Instruments
300-mA, capacitor-free, low-IQ, low-dropout voltage regulator with enable 5-SOT-23 -40 to 125
1,820 In Stock Quote Now

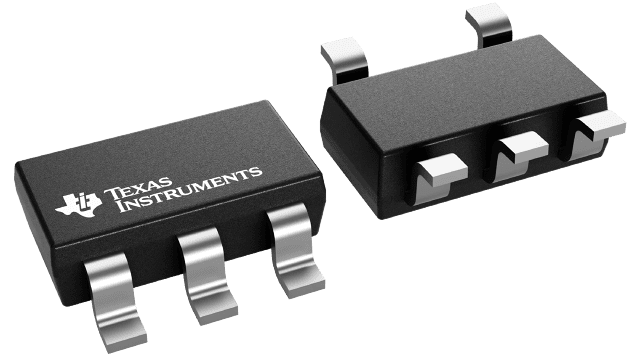

TPS78218DDCRTPS78218DDCRTexas Instruments
