Texas Instruments LM7805MPX/NOPB LDO Voltage Regulators

Name: LM7805MPX/NOPB
Brand: Texas Instruments
SKU: LM7805MPX/NOPB
Price: 0.351 USD
Availability: InStock

80dB@(120Hz) 1.5A null 5V positive 35V SOT-223-4 Linear Voltage Regulators (LDO) ROHS

375,679 ActiveTexas InstrumentsSOT-223$0.35RoHS

Same model may have multiple batches, images only for reference.

LM7805MPX/NOPB

Manufacturer

Texas Instruments

Part Number (MPN)

LM7805MPX/NOPB

Technical Specifications

Texas Instruments LM7805MPX/NOPB LDO Voltage Regulators technical specifications.

General

RoHS

Compliant

Number of Pins

Number of Channels

Package / Case

TO-261-4, TO-261AA

Mounting Type

Surface Mount

Operating Temperature

0°C ~ 125°C

Supply Voltage

7.5 V ~ 30 V

Lifecycle Status

Production

Manufacturer Lifecycle Status

ACTIVE

Package

SOT-223

Alternate Parts Comparison (LM7805MPX/NOPB vs LM3S1332-EQC50-A2T vs LM3S1435-EQC50-A2 vs LM3S2533-EQC50-A2)

Side-by-side technical parameter comparison of related primary models in this product family.

	This Part	Alternate Parts	Alternate Parts	Alternate Parts
	Texas InstrumentsLM7805MPX/NOPB	Texas InstrumentsLM3S1332-EQC50-A2T	Texas InstrumentsLM3S1435-EQC50-A2	Texas InstrumentsLM3S2533-EQC50-A2
Package / Case	TO-261-4, TO-261AA	100-LQFP	100-LQFP	100-LQFP
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Operating Temperature	0°C ~ 125°C	-40°C ~ 105°C (TA)	-40°C ~ 105°C (TA)	-40°C ~ 105°C (TA)
Supply Voltage	7.5 V ~ 30 V	2.25V ~ 2.75V	2.25V ~ 2.75V	2.25V ~ 2.75V
Number of Pins	4	100	100	100
RoHS	Compliant	Yes	Yes	Yes
Package	SOT-223	LQFP	LQFP	LQFP
Schedule B	8542390000	8542310000	8542310000	8542310000
Data Bus Width	--	32bit	32bit	32bit
Core Processor	--	ARM® Cortex®-M3	ARM® Cortex®-M3	ARM® Cortex®-M3
Core Size	--	32-Bit Single-Core	32-Bit Single-Core	32-Bit Single-Core
RAM Size	--	16KB	32KB	64KB
Action	RFQ	RFQ	RFQ	RFQ

More Parts in Voltage Regulators - Linear

Browse additional parts from the same category, grouped by series, package type, and manufacturer. These are catalog suggestions — not verified pin-compatible alternates.

LM1117MPX-3.3/NOPB Texas Instruments

75dB@(120Hz) 800mA Fixed 3.3V Positive 15V SOT-223 Linear Voltage Regulators (LDO) ROHS

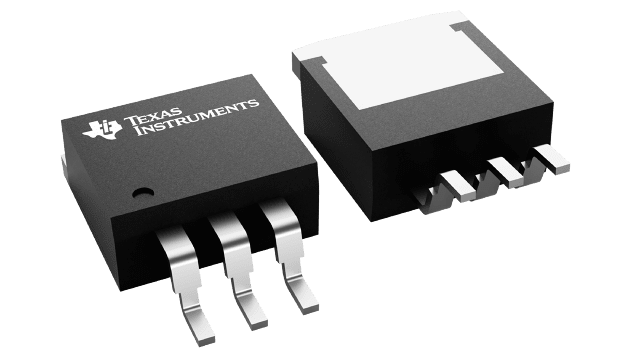

LM2937IMPX-3.3/NOPB Texas Instruments
