Texas Instruments AM3358BZCZA100 Microprocessors
MPU AM335x RISC 32-Bit 1000MHz 1.8V/3.3V 324-Pin NF-BGA

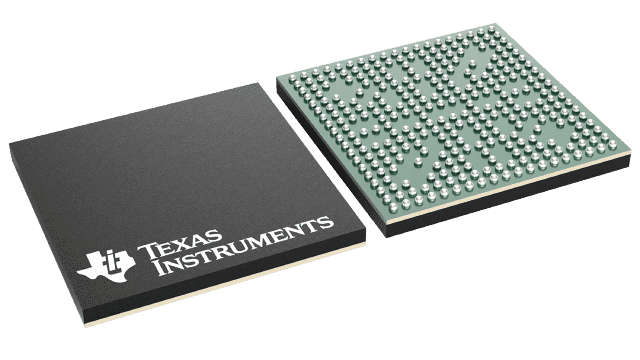

Same model may have multiple batches, images only for reference.
Manufacturer
Part Number (MPN)
AM3358BZCZA100
Detailed Description
Advanced Texas AM3358BZCZA100 Microprocessors for precision electronics.
Package
BGA
Lifecycle Status
Active
RoHS State
RoHS Compliant
Datasheet
AM3358BZCZA100 Datasheet
Quick Jump:
Technical Specifications
Texas Instruments AM3358BZCZA100 Microprocessors technical specifications.
General
Interface
CAN, Ethernet, I2C, SPI, UART, USB
RAM Size
64 kB
Data Bus Width
32 b
RoHS
Compliant
Number of Pins
324
Package / Case
324-LFBGA
Operating Temperature
-40°C ~ 105°C (TJ)
Supply Voltage
912 mV ~ 1.378 V
Lifecycle Status
Production
Manufacturer Lifecycle Status
Active
Alternate Parts Comparison (AM3358BZCZA100 vs AM5718BABCXASR vs AM5746ABZXAS vs AM5718BABCXEQ1)
Side-by-side technical parameter comparison of related primary models in this product family.
| This Part | Alternate Parts | Alternate Parts | Alternate Parts | |
|---|---|---|---|---|
| Package / Case | 324-LFBGA | 760-BFBGA, FCBGA | 760-LFBGA, FCBGA | 760-BFBGA, FCBGA |
| Operating Temperature | -40°C ~ 105°C (TJ) | -40°C ~ 105°C (TJ) | -40°C ~ 105°C (TJ) | -40°C ~ 125°C (TJ) |
| Core Processor | ARM® Cortex®-A8 | ARM® Cortex®-A15 | ARM® Cortex®-A15 | ARM® Cortex®-A15 |
| Lifecycle Status | Production | Active | Active | Active |
| Co Processors DSP | Multimedia; NEON™ SIMD | ARM® Cortex®-M4, BB2D, C66x, GPU, IVA | ARM® Cortex®-M4, C66x | ARM® Cortex®-M4, BB2D, C66x, GPU, IVA |
| Display and Interface Controllers | LCD, Touchscreen | HDMI, LCD | HDMI, LCD, Video | HDMI, LCD |
| Ethernet | 10/100/1000Mbps (2) | 10/100/1000Mbps (1) | GbE (2) | 10/100/1000Mbps (1) |
| Graphics Acceleration | Yes | Yes | No | Yes |
| Number of Cores Bus Width | 1 Core, 32-Bit | 1 Core, 32-Bit | 2 Core, 32-Bit | 1 Core, 32-Bit |
| RAM Controllers | LPDDR, DDR2, DDR3, DDR3L | DDR3, SRAM | DDR3, DDR3L | DDR3, SRAM |
| Security Features | Cryptography, Random Number Generator | 3DES, AES, ARM TZ, Boot Security, Cryptography, MD5, SHA-1/2, TRNG | 3DES, AES, ARM TZ, Boot Security, Cryptography, MD5, SHA-1/2, TRNG | 3DES, AES, ARM TZ, Boot Security, Cryptography, MD5, SHA-1/2, TRNG |
| Speed | 1.0GHz | 1.5GHz | 1.5GHz | 1.5GHz |
| Action |
Cross Reference
Manufacturer-stated alternates from official cross-reference tools. These are not a guaranteed pin-compatible drop-in. Qualify package, pinout, and electrical limits against the datasheet before a board change. See cross-reference vs drop-in compatible .
Suggested replacements
MCIMX535DVP1C2NXP SemiconductorsNXP
IC MPU 32BIT ARM 529PBGA
