Texas Instruments TL431AIDBZT Microcontrollers
V-Ref Adjustable 2.495V to 36V 100mA Automotive 3-Pin SOT-23 T/R

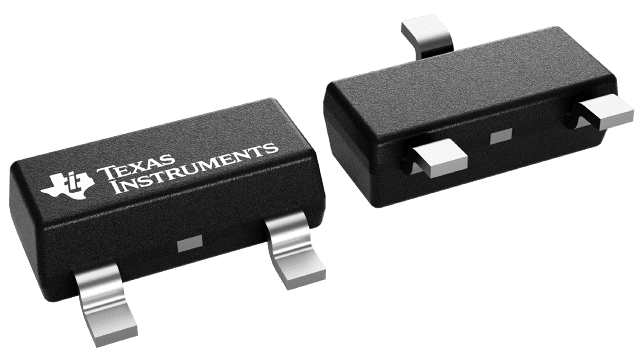

Same model may have multiple batches, images only for reference.
Manufacturer
Part Number (MPN)
TL431AIDBZT
Base Model
Detailed Description
V-Ref Adjustable 2.495V to 36V 100mA Automotive 3-Pin SOT-23 T/R
Package
TO-236-3, SC-59, SOT-23-3
Lifecycle Status
Active
Datasheet
TL431AIDBZT Datasheet
Quick Jump:
Technical Specifications
Texas Instruments TL431AIDBZT Microcontrollers technical specifications.
General
RoHS
Yes
Package / Case
TO-236-3, SC-59, SOT-23-3
Mounting Type
Surface Mount
Operating Temperature
-40°C ~ 85°C (TA)
Lifecycle Status
Active
Tolerance
±1%
Output Type
Adjustable
Reference Type
Shunt
Output Current
100 mA
Output Voltage
2.495V
Alternate Parts Comparison (TL431AIDBZT vs TL431AIDBVR vs TL431AIDBZR vs TL431AIDBVT)
Side-by-side technical parameter comparison of related primary models in this product family.
| This Part | Alternate Parts | Alternate Parts | Alternate Parts | |
|---|---|---|---|---|
| RoHS | Yes | Yes | Compliant | Yes |
| Package | SOT-23 (DBZ)-3 | SOT-23 (DBV)-5 | SOT-23 | SOT-23-5 |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | -- | TO-236-3, SC-59, SOT-23-3 | SC-74A, SOT-753 |
| Mounting Type | Surface Mount | -- | Surface Mount | Surface Mount |
| Tolerance | ±1% | -- | 1 % | 1% |
| Operating Temperature | -40°C ~ 85°C (TA) | -- | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Lifecycle Status | Active | -- | Production | Active |
| Current Cathode | 700 µA | -- | 700 µA | 700 µA |
| Initial Accuracy Max | 0.5, 1, 2 | 0.5, 1, 2 | -- | 0.5, 1, 2 |
| Iout Iz Max Ma | 100 | 100 | -- | 100 |
| Iz for Regulation Min a | 400 | 400 | -- | 400 |
| Operating Temperature Range C | -40 to 125, -40 to 85, 0 to 70 | -40 to 125, -40 to 85, 0 to 70 | -- | -40 to 125, -40 to 85, 0 to 70 |
