Texas Instruments MSPM0C1103SDYYR Microcontrollers
24MHz Arm® Cortex®-M0+ MCU with 8KB flash, 1KB SRAM, 12-bit ADC 16-SOT-23-THIN -40 to 125
Same model may have multiple batches, images only for reference.
Manufacturer
Part Number (MPN)
MSPM0C1103SDYYR
Detailed Description
Advanced Texas MSPM0C1103SDYYR Microcontrollers for precision electronics.
Package
Surface Mount
Lifecycle Status
Active
RoHS State
RoHS Compliant
Datasheet
MSPM0C1103SDYYR Datasheet
Quick Jump:
Technical Specifications
Texas Instruments MSPM0C1103SDYYR Microcontrollers technical specifications.
General
RoHS
Compliant
Number of Pins
16
Lifecycle Status
Production
Manufacturer Lifecycle Status
ACTIVE
Number of UART Channels
1
Height
1.1 mm
Length
4.2 mm
Thickness
950 µm
Width
2 mm
Alternate Parts Comparison (MSPM0C1103SDYYR vs MSPM0L1105TRGER vs MSPM0L1306TDGS20R vs MSPM0L1305SRGER)
Side-by-side technical parameter comparison of related primary models in this product family.
| This Part | Alternate Parts | Alternate Parts | Alternate Parts | |
|---|---|---|---|---|
| Number of Pins | 16 | -- | -- | -- |
| RoHS | Compliant | -- | -- | -- |
| Lifecycle Status | Production | -- | -- | -- |
| Height | 1.1 mm | -- | -- | -- |
| Length | 4.2 mm | -- | -- | -- |
| Manufacturer Lifecycle Status | ACTIVE | -- | -- | -- |
| Number of UART Channels | 1 | -- | -- | -- |
| Thickness | 950 µm | -- | -- | -- |
| Width | 2 mm | -- | -- | -- |
| Package / Case | -- | 24-VFQFN Exposed Pad | 20-TFSOP | 24-VFQFN Exposed Pad |
| Mounting Type | -- | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -- | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 125°C (TA) |
| Action |
More Parts in Microcontrollers
Browse additional parts from the same category, grouped by series, package type, and manufacturer. These are catalog suggestions — not verified pin-compatible alternates.

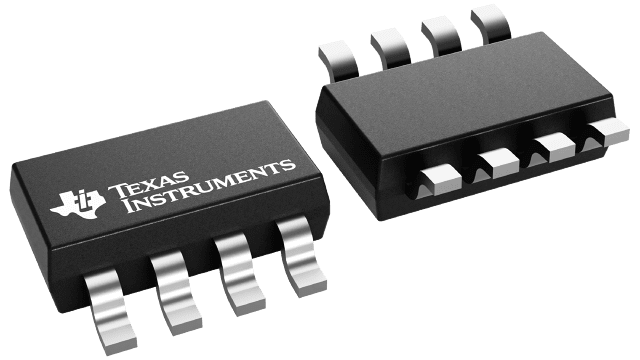

MSPM0C1103SRUKRTexas Instruments24MHz Arm® Cortex®-M0+ MCU with 8KB flash, 1KB SRAM, 12-bit ADC 20-WQFN -40 to 125
