Texas Instruments MSP430FR5726IRGET Microcontrollers
16-Bit RISC MCU, 24MHz, 24-Pin PQCC, FRAM, Industrial
Same model may have multiple batches, images only for reference.
Manufacturer
Part Number (MPN)
MSP430FR5726IRGET
Series
Base Model
Detailed Description
16-Bit RISC MCU, 24MHz, 24-Pin PQCC, FRAM, Industrial
Package
24-VFQFN Exposed Pad
Lifecycle Status
Active
Datasheet
MSP430FR5726IRGET Datasheet
Quick Jump:
Technical Specifications
Texas Instruments MSP430FR5726IRGET Microcontrollers technical specifications.
General
Series
MSP430FR5726
RAM Size
1K x 8
Data Bus Width
16 bit
Maximum Clock Frequency
8 MHz
RoHS
Yes
Package / Case
24-VFQFN Exposed Pad
Mounting Type
Surface Mount
Operating Temperature
-40°C ~ 85°C (TA)
Supply Voltage
2V ~ 3.6V
Lifecycle Status
Active
Alternate Parts Comparison (MSP430FR5726IRGET vs MSP430FR5968IRGZR vs MSP430FR5959IRHAR vs MSP430FR2433IRGER)
Side-by-side technical parameter comparison of related primary models in this product family.
| This Part | Alternate Parts | Alternate Parts | Alternate Parts | |
|---|---|---|---|---|
| Operating Temperature | -40°C ~ 85°C (TA) | - 40°C ~ + 85°C | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| RoHS | Yes | Yes | Yes | Compliant |
| Package | VQFN-24 | VQFN (RGZ)-48 | VQFN (RHA)-40 | VQFN |
| Program Memory Size | 16KB (16K x 8) | 48 kB | 64KB (64K x 8) | 15.5KB (15.5K x 8) |
| Series | MSP430FR5726 | MSP430FR5968 | MSP430™ FRAM | -- |
| Package / Case | 24-VFQFN Exposed Pad | -- | 40-VFQFN Exposed Pad | 24-VFQFN Exposed Pad |
| Mounting Type | Surface Mount | SMD/SMT | -- | Surface Mount |
| Supply Voltage | 2V ~ 3.6V | -- | 1.8V ~ 3.6V | 1.8V ~ 3.6V |
| Data Bus Width | 16 bit | 16 bit | -- | 16 b |
| Core Processor | MSP430 CPUXV2 | -- | MSP430 CPUXV2 | MSP430 CPU16 |
| Core Size | 16-Bit | -- | 16-Bit | 16-Bit |
| RAM Size | 1K x 8 | -- | 2K x 8 | 4 kB |
| Action |
Cross Reference
Manufacturer-stated alternates from official cross-reference tools. These are not a guaranteed pin-compatible drop-in. Qualify package, pinout, and electrical limits against the datasheet before a board change. See cross-reference vs drop-in compatible .
Suggested replacements
S9S12GN16BVTJNXP SemiconductorsNXP
IC MCU 16BIT 16KB FLASH 20TSSOP
S9S12VR16F0MLCNXP SemiconductorsNXP
IC MCU 16BIT 16KB FLASH 32LQFP
MC912D60ACFUE8NXP SemiconductorsNXP
IC MCU 16BIT 60KB FLASH 80QFP
More Parts in Microcontrollers
Browse additional parts from the same category, grouped by series, package type, and manufacturer. These are catalog suggestions — not verified pin-compatible alternates.
MSP430FR6972IPMRTexas Instruments64KB 1.8V~3.6V MSP430 16MHz 51 LQFP-64(10x10) Microcontroller Units (MCUs/MPUs/SOCs) ROHS

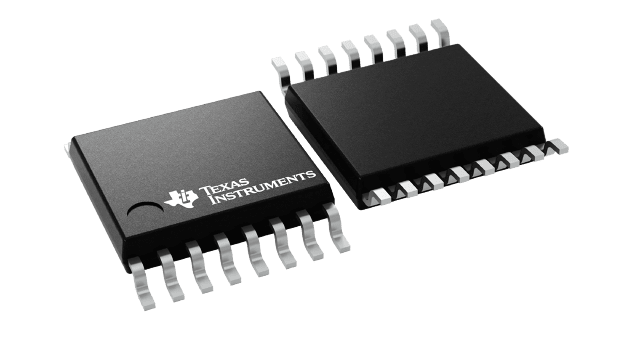

MSP430FR2111IPW16RTexas Instruments16 MHz MCU with 4KB FRAM, 1KB SRAM, comparator, 10-bit ADC, UART/SPI, timer 16-TSSOP -40 to 85
MSP430FR2311IPW16RTexas Instruments3.75KB 1.8V~3.6V MSP430 16MHz 11 TSSOP-16 Microcontroller Units (MCUs/MPUs/SOCs) ROHS

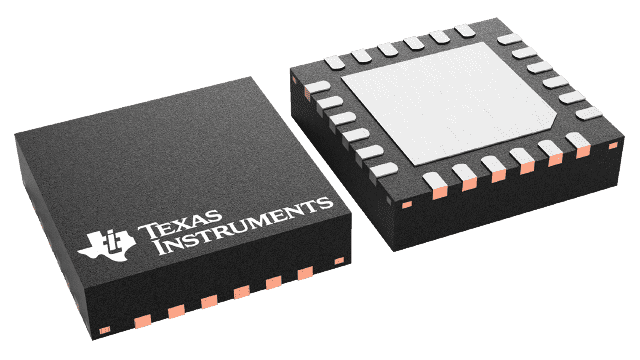

MSP430FR2433IRGERTexas Instruments16 MHz MCU with 16KB FRAM, 4KB SRAM, 10-bit ADC, UART/SPI/I2C, timer 24-VQFN -40 to 85
