Texas Instruments LM2904DR Amplifiers - Op Amps, Buffer, Instrumentation
Dual, 26-V, 700-kHz operational amplifier 8-SOIC -40 to 125
Same model may have multiple batches, images only for reference.
Manufacturer
Part Number (MPN)
LM2904DR
Category
Detailed Description
High-performance Texas Instruments Amplifiers for stable electronic control.
Package
SOIC
Lifecycle Status
Active
RoHS State
RoHS Compliant
Datasheet
LM2904DR Datasheet
Quick Jump:
Technical Specifications
Texas Instruments LM2904DR Amplifiers - Op Amps, Buffer, Instrumentation technical specifications.
General
RoHS
Compliant
Number of Pins
8
Number of Channels
2
Package / Case
8-SOIC
Mounting Type
Surface Mount
Operating Temperature
-40°C ~ 125°C
Supply Voltage
13 V
Lifecycle Status
Production
Manufacturer Lifecycle Status
ACTIVE
Package
SOIC
Alternate Parts Comparison (LM2904DR vs LM339DR vs LM324M/NOPB vs LM293DR)
Side-by-side technical parameter comparison of related primary models in this product family.
| This Part | Alternate Parts | Alternate Parts | Alternate Parts | |
|---|---|---|---|---|
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 125°C | 0 °C ~ 70 °C | 0°C ~ 70°C (TJ) | -25°C ~ 85°C |
| Supply Voltage | 13 V | 2 V ~ 30 V | 3V ~ 32V | 28 V |
| Number of Channels | 2 | 4 | 4 | 2 |
| RoHS | Compliant | Compliant | Yes | Compliant |
| Height | 1.75 mm | 0 m | 1.45mm | 1.75 mm |
| Input Bias Current | -20 nA | -25 nA | 45nA | 250 nA |
| Input Offset Voltage | 3 mV | 2 mV | 2mV | 5 mV |
| Length | 4.9 mm | 8.65 mm | 8.64mm | 4.9 mm |
| Max Dual Supply Voltage | 13 V | 18 V | 16V | 18 V |
| Min Dual Supply Voltage | 1.5 V | 1 V | 1.5V | 1 V |
| Number of Elements | 2 | 4 | 4 | 2 |
| Action |
Cross Reference
Manufacturer-stated alternates from official cross-reference tools. These are not a guaranteed pin-compatible drop-in. Qualify package, pinout, and electrical limits against the datasheet before a board change. See cross-reference vs drop-in compatible .
Suggested replacements
LM2904VDR2GonsemiSimilaronsemi
Pin YesPkg YesElec Mixed
Dual Op Amp, 1MHz BW, 16V, SOIC-8
More Parts in Operational Amplifiers, Instrumentation Amplifiers and Buffer Amplifiers
Browse additional parts from the same category, grouped by series, package type, and manufacturer. These are catalog suggestions — not verified pin-compatible alternates.
LM2903DRTexas InstrumentsComparator, 2 Func, 15000uV Offset-Max, 1500ns Response Time, BIPolar, PDIP8
OP07CDRTexas InstrumentsPRECISION OPERATIONAL AMPLIFIER Operational Amplifier, 1 Func, 250uV Offset-Max, BIPolar, PDSO8

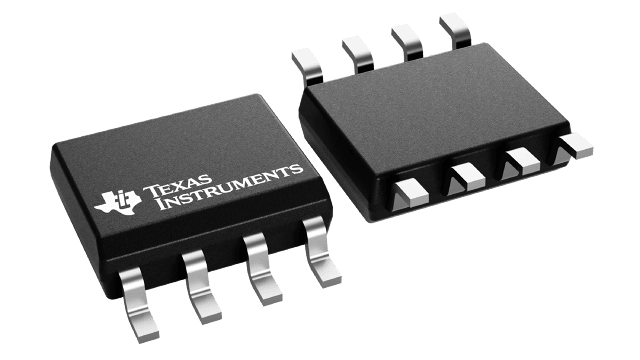

LM258DRTexas InstrumentsDual, 30-V, 700-kHz operational amplifier with -25°C to 85°C operation 8-SOIC -25 to 85
