Texas Instruments DRV5053VAQDBZRQ1 Magnetic Sensors
Automotive, high voltage (up to 38V), linear hall effect sensor 3-SOT-23 -40 to 125

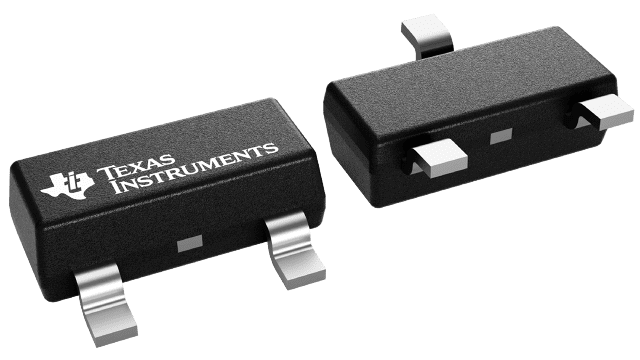

Same model may have multiple batches, images only for reference.
Manufacturer
Part Number (MPN)
DRV5053VAQDBZRQ1
Base Model
Detailed Description
Automotive, high voltage (up to 38V), linear hall effect sensor 3-SOT-23 -40 to 125
Package
SOT-23 (DBZ)-3
Lifecycle Status
Active
Datasheet
DRV5053VAQDBZRQ1 Datasheet
Quick Jump:
Technical Specifications
Texas Instruments DRV5053VAQDBZRQ1 Magnetic Sensors technical specifications.
General
RoHS
Yes
Type
Bipolar
Sensitivity Typ V Mt
-90, -45, -23, -11, 23, 45
Accuracy
70
Bandwidth Khz
10, 20
Output
0.2 V to 1.8 V
Supply Voltage Min V
2.7
Supply Voltage Max V
38
Operating Temperature Range C
-40 to 125, -40 to 150
Package
SOT-23 (DBZ)-3
Alternate Parts Comparison (DRV5053VAQDBZRQ1 vs DRV5053VAQDBZR vs DRV5053VAQDBZT vs DRV134UAE4)
Side-by-side technical parameter comparison of related primary models in this product family.
| This Part | Alternate Parts | Alternate Parts | Alternate Parts | |
|---|---|---|---|---|
| RoHS | Yes | Compliant | Yes | Yes |
| Package | SOT-23 (DBZ)-3 | SOT-23 | SOT23-3 | SOIC |
| Accuracy | 70 | 70 | 70 | -- |
| Bandwidth Khz | 10, 20 | 20 | 20 | -- |
| Operating Temperature Range C | -40 to 125, -40 to 150 | -40 to 125 | -40 to 125 | -- |
| Output | 0.2 V to 1.8 V | 0.2 V to 1.8 V | 0.2 V to 1.8 V | -- |
| Sensitivity Typ V Mt | -90, -45, -23, -11, 23, 45 | -90, -45, -23, -11, 23, 45 | -90, -45, -23, -11, 23, 45 | -- |
| Supply Voltage Max V | 38 | 38 | 38 | -- |
| Supply Voltage Min V | 2.7 | 2.5 | 2.5 | -- |
| Type | Bipolar | -- | Bipolar | Differential |
| Action |
