STMicroelectronics T1050H-6G-TR TRIACs
10 A - 600 V - 150 °C H-series Triacs
Same model may have multiple batches, images only for reference.
Manufacturer
Part Number (MPN)
T1050H-6G-TR
Detailed Description
10 A - 600 V - 150 °C H-series Triacs
Package
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Lifecycle Status
Active
Datasheet
T1050H-6G-TR Datasheet
Quick Jump:
Technical Specifications
STMicroelectronics T1050H-6G-TR TRIACs technical specifications.
General
Series
Snubberless™
Package / Case
TO-263-3, D2PAK
Mounting Type
Surface Mount
Operating Temperature
-40°C ~ 150°C (TJ)
Lifecycle Status
Active
Current Non Rep Surge 50 60hz Itsm
100A, 105A
Current Gate Trigger Igt Max
50 mA
Current Hold Ih Max
75 mA
Configuration
Single
Triac Type
Alternistor - Snubberless

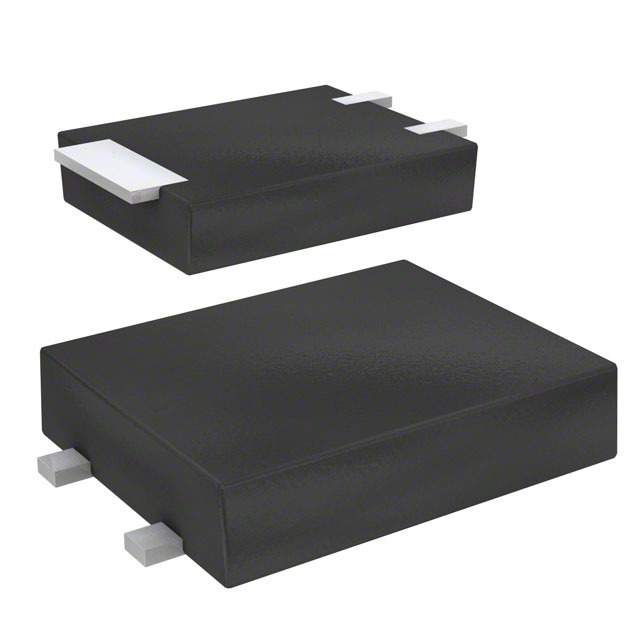

Alternate Parts Comparison (T1050H-6G-TR vs BTB16-800BRG vs Z0103MUF)
Side-by-side technical parameter comparison of related primary models in this product family.
| This Part | Alternate Parts | Alternate Parts | |
|---|---|---|---|
| Package / Case | TO-263-3, D2PAK | TO-220-3 | 3-SMB, Flat Leads |
| Mounting Type | Surface Mount | Through Hole | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Lifecycle Status | Active | Production | Production |
| Configuration | Single | Single | Single |
| Current Gate Trigger Igt Max | 50 mA | 50 mA | 3 mA |
| Current Hold Ih Max | 75 mA | 50 mA | 7 mA |
| Current Non Rep Surge 50 60hz Itsm | 100A, 105A | 160A, 168A | 8A, 8.5A |
| Current on State It Rms Max | 10 A | 16 A | 1 A |
| Triac Type | Alternistor - Snubberless | Standard | Logic - Sensitive Gate |
| Voltage Gate Trigger Vgt Max | 1 V | 1.3 V | 1.3 V |
| Voltage Off State | 600 V | 800 V | 600 V |
