STMicroelectronics L78L12ACD13TR Microcontrollers
12V LDO Regulator, 100mA, 35V In, SO, Surface Mount
Same model may have multiple batches, images only for reference.
Manufacturer
Part Number (MPN)
L78L12ACD13TR
Base Model
Detailed Description
12V LDO Regulator, 100mA, 35V In, SO, Surface Mount
Package
8-SOIC (0.154", 3.90mm Width)
Lifecycle Status
Active
Datasheet
L78L12ACD13TR Datasheet
Quick Jump:
Technical Specifications
STMicroelectronics L78L12ACD13TR Microcontrollers technical specifications.
General
Package / Case
8-SOIC
Mounting Type
Surface Mount
Operating Temperature
0°C ~ 125°C
Output Type
Fixed
Max Input Voltage
35V
Current Supply Max
6.5 mA
Output Current
100mA
Quiescent Current
6 mA
Output Configuration
Positive
Output Voltage
12V
Alternate Parts Comparison (L78L12ACD13TR vs L78L05ACZ vs L78L08ACD13TR vs L78L05ABUTR)
Side-by-side technical parameter comparison of related primary models in this product family.
| This Part | Alternate Parts | Alternate Parts | Alternate Parts | |
|---|---|---|---|---|
| Package / Case | 8-SOIC | TO-226-3, TO-92-3 | 8-SOIC | TO-243AA |
| Mounting Type | Surface Mount | Through Hole | Surface Mount | Surface Mount |
| Operating Temperature | 0°C ~ 125°C | 0°C ~ 125°C | 0°C ~ 125°C | -40°C ~ 125°C |
| Current Supply Max | 6.5 mA | 6 mA | 6 mA | 6 mA |
| Max Input Voltage | 35V | 20 V | 23 V | 20 V |
| Number of Regulators | 1 | 1 | 1 | 1 |
| Output Configuration | Positive | Positive | Positive | Positive |
| Output Current | 100mA | 100 mA | 100 mA | 100 mA |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Output Voltage | 12V | 5 V | 8 V | 5 V |
| Protection Features | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit |
| PSRR | 42dB (120Hz) | 49 dB | 45dB (120Hz) | 49 dB |
| Action |
More Parts in Microcontrollers
Browse additional parts from the same category, grouped by series, package type, and manufacturer. These are catalog suggestions — not verified pin-compatible alternates.
L78L05ABUTRSTMicroelectronicsLinear Voltage Regulator, Fixed, Positive Output, 30 V, 5 V, 100 mA, 3 Pins, SOT-89
L78L05ACZSTMicroelectronicsPWR SPLY FUNC, VOLTAGE REGULATOR, POSITIVE VOLTAGE OUT, TO-92,IS 5.5MA, VO 5V, VI 10V
L78L09ABUTRSTMicroelectronicsLinear Voltage Regulator, Fixed, 15V primary input, 9V/100 mA/1 Output, SOT-89-3

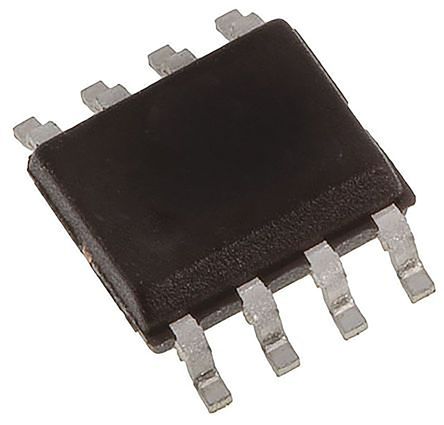

L78L08ACD13TRSTMicroelectronicsL78L Series 100 mA 8 V Three Terminal Positive Voltage LDO Regulator - SOIC-8
