NXP Semiconductors SN74LVC1G08DBVR Microcontrollers

Single 2-input AND gate

340,710 ActiveNXP SemiconductorsSN74LVCSC-74A, SOT-753$0.08

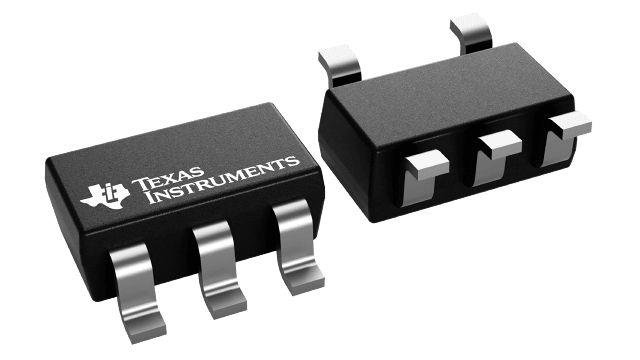

SN74LVC1G08DBVR SC-74A, SOT-753 package illustration

Same model may have multiple batches, images only for reference.

SN74LVC1G08DBVR
Manufacturer
Part Number (MPN)
SN74LVC1G08DBVR
Base Model
Detailed Description
Single 2-input AND gate
Package
SC-74A, SOT-753
Lifecycle Status
Active
Datasheet
PDF SN74LVC1G08DBVR Datasheet
Quick Jump:
Ready to order?In stock and ready to ship.
Competitive Pricing
Fast & Reliable Delivery
Quality Assured

Ordering Code Family

SN74LVC groups multiple orderable suffixes under one base device. Compare package, grade, and reel options on the base-number page before substituting within the family.

14 ordering variants listed on the family page.

View all variants

Technical Specifications

NXP Semiconductors SN74LVC1G08DBVR Microcontrollers technical specifications.

General

Package / Case
SC-74A, SOT-753
Mounting Type
Surface Mount
Operating Temperature
-40°C ~ 125°C (TA)
Supply Voltage
1.65V ~ 5.5V
Lifecycle Status
Active
Number of Circuits
1
Number of Inputs
2
Current Quiescent Max
10 µA
Logic Type
AND Gate
Current Output High Low
32mA, 32mA

Related Parts Comparison (SN74LVC1G08DBVR vs SN74LVC1G08DBVR vs SN74LVC157ADRE4 vs SN74LVC00ADBRG4)

Side-by-side specifications of related catalog parts.

Engineering verification required. Related parts may have different electrical ratings, pinouts, footprints, and operating limits. Verify suitability for your circuit before substitution.

This PartRelated PartRelated PartRelated Part
Package / CaseSC-74A, SOT-753SC-74A, SOT-75316-SOIC14-SSOP
Mounting TypeSurface MountSurface MountSurface MountSurface Mount
Operating Temperature-40°C ~ 125°C (TA)-40°C ~ 125°C (TA)-40°C ~ 85°C-40°C ~ 125°C
Supply Voltage1.65V ~ 5.5V1.65V ~ 5.5V2V ~ 3.6V1.65V ~ 3.6V
Lifecycle StatusActiveProductionActiveActive
Current Output High Low32mA, 32mA32mA, 32mA24mA, 24mA24mA, 24mA
Current Quiescent Max10 µA10 µA--1 µA
Logic TypeAND GateAND Gate--NAND Gate
Max Propagation Delay V Max Cl4ns @ 5V, 50pF4ns @ 5V, 50pF--4.1ns @ 3.3V, 50pF
Number of Circuits11--4
Number of Inputs22--2
