Microchip Technology MCP4541T-103E/MS Digital Potentiometers
Digital Potentiometer, ICs Sngl 7B NV I2C POT | Microchip Technology Inc.
Same model may have multiple batches, images only for reference.
Manufacturer
Part Number (MPN)
MCP4541T-103E/MS
Detailed Description
Advanced Microchip MCP4541T-103E/MS Digital for precision electronics.
Package
MSOP
Lifecycle Status
Active
RoHS State
RoHS Compliant
Datasheet
MCP4541T-103E/MS Datasheet
Quick Jump:
Technical Specifications
Microchip Technology MCP4541T-103E/MS Digital Potentiometers technical specifications.
General
Interface
2-Wire, I2C, Serial
RoHS
Compliant
Number of Pins
8
Package / Case
8-TSSOP
Packaging
Tape and Reel
Mounting Type
Surface Mount
Operating Temperature
-40°C ~ 125°C
Supply Voltage
5 V
Lifecycle Status
Production
Projected Eol Date
2034-06-30
Alternate Parts Comparison (MCP4541T-103E/MS vs MCP1702T-3302E/CB vs MCP6004T-I/SL vs MCP6002T-I/SN)
Side-by-side technical parameter comparison of related primary models in this product family.
| This Part | Alternate Parts | Alternate Parts | Alternate Parts | |
|---|---|---|---|---|
| Package / Case | 8-TSSOP | TO-236-3, SC-59, SOT-23-3 | 14-SOIC | 8-SOIC |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Number of Pins | 8 | 3 | 14 | 8 |
| RoHS | Compliant | Compliant | Compliant | Compliant |
| Lifecycle Status | Production | Production | Production | Production |
| Country of Assembly | Thailand | Taiwan, Thailand | Thailand | Taiwan, Thailand |
| Country of Fabrication | United States of America | United States of America | United States of America | United States of America |
| Export Control Classification Number ECCN Code | EAR99 | EAR99 | EAR99 | EAR99 |
| Harmonized Tariff Schedule HTS Code | 8542.39.0060 | 8542.39.0060 | 8542.33.0001 | 8542.33.0001 |
| Hs Code | 8542.39.0090 | 8542.39.0090 | 8542.33.0001 | 8542.33.0001 |
| Introduction Date | 2008-06-30 | 2006-09-28 | 2002-10-22 | 2002-07-12 |
| Action |
More Parts in Digital Potentiometers
Browse additional parts from the same category, grouped by series, package type, and manufacturer. These are catalog suggestions — not verified pin-compatible alternates.
MCP4541-103E/MSMicrochip Technology7/8-Bit Single/Dual I2C Digital POT with Non-Volatile Memory | IC DGTL POT 10KOHM 129TAP 8MSOP

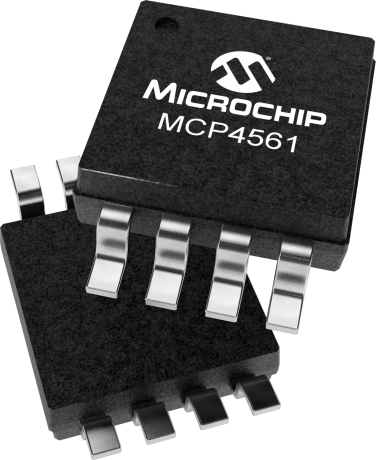

MCP4561-502E/MSMicrochip TechnologyDigital Potentiometer 5kOhm 256POS Non-Volatile Linear 8-Pin MSOP Tube Automotive AEC-Q100
