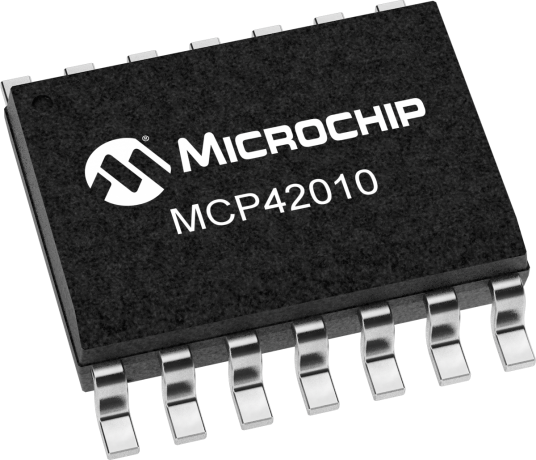

Microchip Technology MCP42010T-I/SL Digital Potentiometers
Digital Pot; 256 steps; SPI; 10kohms; dual channel14 SOIC .150in T/R
Same model may have multiple batches, images only for reference.
Manufacturer
Part Number (MPN)
MCP42010T-I/SL
Detailed Description
Advanced Microchip MCP42010T-I/SL Digital for precision electronics.
Package
SOIC
Lifecycle Status
Active
RoHS State
RoHS Compliant
Datasheet
Quick Jump:
Technical Specifications
Microchip Technology MCP42010T-I/SL Digital Potentiometers technical specifications.
General
Interface
SPI, Serial
RoHS
Compliant
Number of Pins
14
Number of Channels
1
Package / Case
14-SOIC
Mounting Type
Surface Mount
Operating Temperature
-40°C ~ 85°C
Supply Voltage
2.7V ~ 5.5V
Lifecycle Status
Production
Projected Eol Date
2034-05-16
Related Parts Comparison (MCP42010T-I/SL vs MCP1702T-3302E/CB vs MCP6001T-E/OT vs MCP6V11UT-E/LT)
Side-by-side specifications of related catalog parts.
Engineering verification required. Related parts may have different electrical ratings, pinouts, footprints, and operating limits. Verify suitability for your circuit before substitution.
| This Part | Related Part | Related Part | Related Part | |
|---|---|---|---|---|
| Package / Case | 14-SOIC | TO-236-3, SC-59, SOT-23-3 | SC-74A, SOT-753 | 5-TSSOP |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Number of Pins | 14 | 3 | 5 | 5 |
| Number of Channels | 1 | 1 | 1 | 1 |
| RoHS | Compliant | Compliant | Compliant | Compliant |
| Lifecycle Status | Production | Production | Production | Production |
| Country of Assembly | Thailand | Taiwan, Thailand | Thailand | Thailand |
| Country of Fabrication | United States of America | United States of America | United States of America | United States of America |
| Harmonized Tariff Schedule HTS Code | 8542.39.0060 | 8542.39.0060 | 8542.33.0001 | 8542.33.0001 |
| Hs Code | 8542.39.0090 | 8542.39.0090 | 8542.33.0001 | 8542.33.0001 |
| Introduction Date | 2002-05-16 | 2006-09-28 | 2003-11-06 | 2012-03-29 |
| Action |
