Microchip Technology AT24C02C-SSHM-B Microcontrollers
IC EEPROM 2KBIT I2C 1MHZ 8SOIC
Same model may have multiple batches, images only for reference.
Manufacturer
Part Number (MPN)
AT24C02C-SSHM-B
Base Model
Detailed Description
IC EEPROM 2KBIT I2C 1MHZ 8SOIC
Package
8-SOIC (0.154", 3.90mm Width)
Lifecycle Status
Active
Datasheet
AT24C02C-SSHM-B Datasheet
Quick Jump:
Technical Specifications
Microchip Technology AT24C02C-SSHM-B Microcontrollers technical specifications.
General
Series
AT24C02C
Interface
Serial-I2C
Memory Size
2Kb (256 x 8)
Maximum Clock Frequency
1 MHz
Active Read Current Max
1 mA
RoHS
Compliant
Number of Pins
8
Package / Case
8-SOIC
Mounting Type
Surface Mount
Operating Temperature
-40°C ~ 85°C (TA)
Alternate Parts Comparison (AT24C02C-SSHM-B vs AT24C08BN-SH-B vs AT24C32E-STUM-T vs AT24C64D-MAHM-E)
Side-by-side technical parameter comparison of related primary models in this product family.
| This Part | Alternate Parts | Alternate Parts | Alternate Parts | |
|---|---|---|---|---|
| Package / Case | 8-SOIC | 8-SOIC | SOT-23-5 Thin, TSOT-23-5 | 8-UFDFN Exposed Pad |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TC) | -40°C ~ 85°C (TA) |
| Supply Voltage | 1.7V ~ 5.5V | 1.8V ~ 5.5V | 1.7V ~ 3.6V | 1.7V ~ 5.5V |
| Memory Size | 2Kb (256 x 8) | 8Kb (1K x 8) | 32Kb (4K x 8) | 64Kb (8K x 8) |
| RoHS | Compliant | ROHS3 Compliant | Compliant | Compliant |
| Lifecycle Status | Active | Obsolete | Active | Active |
| Access Time | 550 ns | 550 ns | 450 ns | 450 ns |
| Clock Frequency | 1 MHz | 1 MHz | 1 MHz | 1 MHz |
| Data Retention | 100 | 100 Year | 100(Min) | 100(Min) |
| Max Frequency | 1 MHz | 1 MHz | 1 MHz | 1 MHz |
| Memory Format | EEPROM | EEPROM | EEPROM | EEPROM |
| Action |
Cross Reference
Manufacturer-stated alternates from official cross-reference tools. These are not a guaranteed pin-compatible drop-in. Qualify package, pinout, and electrical limits against the datasheet before a board change. See cross-reference vs drop-in compatible .
Suggested replacements
CAV24C02WE-GT3onsemiSimilaronsemi
Pin YesPkg YesElec Mixed
2Kb EEPROM I2C Serial SOIC 8-Pin 2.5-5.5V 400kHz
More Parts in Microcontrollers
Browse additional parts from the same category, grouped by series, package type, and manufacturer. These are catalog suggestions — not verified pin-compatible alternates.

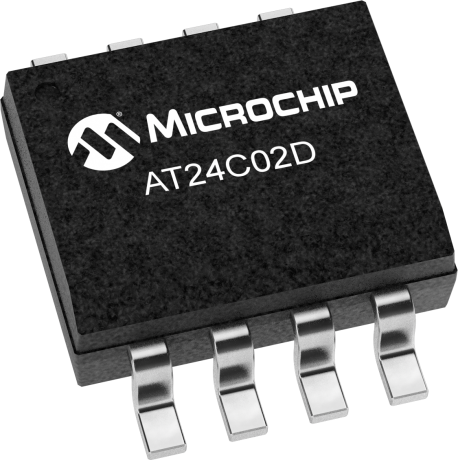

AT24C02D-SSHM-TMicrochip TechnologyEEPROM Serial-2Wire 2K-bit 256 x 8 1.8V/2.5V/3.3V 8-Pin SOIC T/R - Tape and Reel
