Texas Instruments TPS7B4250QDBVRQ1 LDO Voltage Regulators
LDO Regulator Pos 1.5V to 18V 0.05A Automotive 5-Pin SOT-23 T/R
Same model may have multiple batches, images only for reference.
Manufacturer
Part Number (MPN)
TPS7B4250QDBVRQ1
Detailed Description
Advanced Texas TPS7B4250QDBVRQ1 LDO for precision electronics.
Package
SOT-23
Lifecycle Status
Active
RoHS State
RoHS Compliant
Datasheet
TPS7B4250QDBVRQ1 Datasheet
Quick Jump:
Technical Specifications
Texas Instruments TPS7B4250QDBVRQ1 LDO Voltage Regulators technical specifications.
General
RoHS
Compliant
Number of Pins
5
Package / Case
SC-74A, SOT-753
Packaging
Tape & Reel (TR)
Mounting Type
Surface Mount
Operating Temperature
-40°C ~ 150°C
Lifecycle Status
Production
Manufacturer Lifecycle Status
ACTIVE
Package
SOT-23
Weight
15.790684 mg
Alternate Parts Comparison (TPS7B4250QDBVRQ1 vs TPS7B6933DBVR vs TPS7A0230PDBVR vs TPS7A2450DBVR)
Side-by-side technical parameter comparison of related primary models in this product family.
| This Part | Alternate Parts | Alternate Parts | Alternate Parts | |
|---|---|---|---|---|
| Package / Case | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 105°C | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Number of Pins | 5 | 5 | 5 | 5 |
| RoHS | Compliant | Compliant | Compliant | Compliant |
| Lifecycle Status | Production | Production | Production | Production |
| Height | 1.45 mm | 1.45 mm | 1.45 mm | 1.45 mm |
| Length | 2.9 mm | 2.9 mm | 2.9 mm | 2.9 mm |
| Manufacturer Lifecycle Status | ACTIVE | ACTIVE | ACTIVE | ACTIVE |
| Max Input Voltage | 40 V | 40V | 6V | 18V |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Output Configuration | Positive | Positive | Positive | Positive |
| Output Current | 50 mA | 150 mA | 200 mA | 200 mA |
| Action |
More Parts in Voltage Regulators - Linear
Browse additional parts from the same category, grouped by series, package type, and manufacturer. These are catalog suggestions — not verified pin-compatible alternates.
TPS7A2450DBVRTexas Instruments200-mA, 18-V, ultra-low-IQ, low-dropout (LDO) voltage regulator with enable ; 5-SOT-23 -40 to 125
TPS7B6933DBVRTexas Instruments60dB@(100Hz) 150mA null 3.3V positive 40V SOT-23-5 Linear Voltage Regulators (LDO) ROHS
LP2985AIM5X-5.0/NOPBTexas Instruments150-mA, 16-V, low-dropout voltage regulator with enable 5-SOT-23 -40 to 125

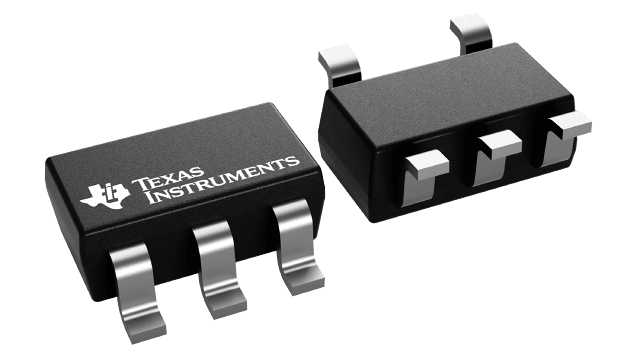

TLV75715PDBVRTexas Instruments1-A, low-IQ high-accuracy low-dropout (LDO) voltage regulator with enable 5-SOT-23 -40 to 125
