Texas Instruments SN74HC14DRG3 Microcontrollers
6-Ch Schmitt Trigger Inverter IC, 2-6V, 155ns, SOIC
Same model may have multiple batches, images only for reference.
Manufacturer
Part Number (MPN)
SN74HC14DRG3
Series
Base Model
Detailed Description
6-Ch Schmitt Trigger Inverter IC, 2-6V, 155ns, SOIC
Package
14-SOIC (0.154", 3.90mm Width)
Lifecycle Status
Active
Datasheet
SN74HC14DRG3 Datasheet
Quick Jump:
Technical Specifications
Texas Instruments SN74HC14DRG3 Microcontrollers technical specifications.
General
Package / Case
14-SOIC
Mounting Type
Surface Mount
Operating Temperature
-40°C ~ 85°C
Supply Voltage
2V ~ 6V
Features
Schmitt Trigger
Number of Circuits
6
Number of Inputs
1
Current Quiescent Max
2 µA
Logic Type
Inverter
Current Output High Low
5.2mA, 5.2mA
Alternate Parts Comparison (SN74HC14DRG3 vs SN74HC4852DRG4 vs SN74HC4851DR vs SN74HC4851QDRG4Q1)
Side-by-side technical parameter comparison of related primary models in this product family.
| This Part | Alternate Parts | Alternate Parts | Alternate Parts | |
|---|---|---|---|---|
| Package / Case | 14-SOIC | 16-SOIC | 16-SOIC | 16-SOIC |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Number of Circuits | 6 | 2 | 1 | 1 |
| Channel Capacitance Cs Off Cd Off | -- | 22pF | 22pF | 22pF |
| Channel to Channel Matching Ron | -- | 3Ohm | 3Ohm | 3Ohm |
| Current Leakage Is Off Max | -- | 200nA | 200nA | 200nA |
| Multiplexer Demultiplexer Circuit | -- | 4:1 | 8:1 | 8:1 |
| On State Resistance Max | -- | 195Ohm | 195Ohm | 195Ohm |
| Switch Time Ton Toff Max | -- | 39ns, 78ns | 78ns, 78ns | 78ns, 78ns |
| Voltage Supply Single V | -- | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V |
| Action |
More Parts in Microcontrollers
Browse additional parts from the same category, grouped by series, package type, and manufacturer. These are catalog suggestions — not verified pin-compatible alternates.

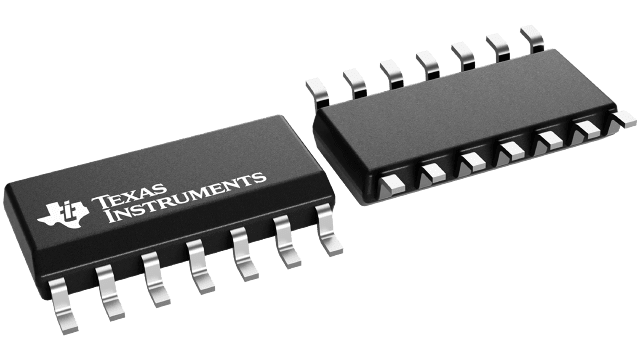

SN74HC08DRTexas Instruments4-ch, 2-input, 2-V to 6-V 5.2 mA drive strength AND gate 14-SOIC -40 to 85
