Texas Instruments OPA843IDBVT Operational Amplifiers, Instrumentation Amplifiers and Buffer Amplifiers
High-performance, single-channel, voltage feedback operational amplifier featuring 800MHz bandwidth and a 1000V/µs slew rate.
Same model may have multiple batches, images only for reference.
Technical Specifications
Texas Instruments OPA843IDBVT Operational Amplifiers, Instrumentation Amplifiers and Buffer Amplifiers technical specifications.
General
Alternate Parts Comparison (OPA843IDBVT vs OPA330AIDBVR vs OPA2330AIDRBR vs OPA2132UA)
Side-by-side technical parameter comparison of related primary models in this product family.
| This Part | Alternate Parts | Alternate Parts | Alternate Parts | |
|---|---|---|---|---|
| Package / Case | SC-74A, SOT-753 | SC-74A, SOT-753 | 8-VDFN Exposed Pad | 8-SOIC |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 85°C (TA) |
| RoHS | Yes | Yes | Yes | Yes |
| Amplifier Type | Voltage Feedback | Zero-Drift | CMOS, Zero-Drift | GENERAL PURPOSE |
| Current Input Bias | 20 µA | 200 pA | 200 pA | 5 pA |
| Current Output Channel | 100 mA | 5 mA | 5 mA | 40 mA |
| Current Supply | 20.2mA | 21µA | 21µA (x2 Channels) | 4mA (x2 Channels) |
| Gain Bandwidth Product | 800MHz | 350 kHz | 350 kHz | 8MHz |
| Number of Circuits | 1 | 1 | 2 | 2 |
| Package | SOT-23 | SOT-23 | VSON EP | D |
| Radiation Hardening | No | No | No | No |
| Action |
Texas Instruments OPA843IDBVT Operational Amplifiers, Instrumentation Amplifiers and Buffer Amplifiers Overview
High-performance, single-channel, voltage feedback operational amplifier featuring 800MHz bandwidth and a 1000V/µs slew rate. This amplifier offers a 500MHz -3dB bandwidth and 100mA output current, ideal for demanding signal processing applications. Operating from a dual supply of 5V, with a maximum dual supply of 6V and a maximum single supply of 12V, it provides excellent common mode rejection (85dB) and power supply rejection (90dB).
Packaged in a compact SOT-23, this lead-free, RoHS-compl...
More Parts in Operational Amplifiers, Instrumentation Amplifiers and Buffer Amplifiers

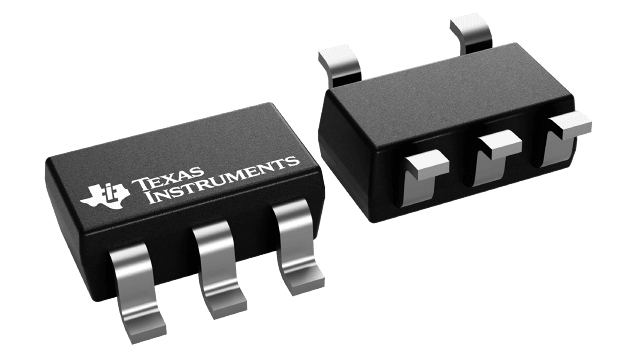

LM321LVIDBVRTexas InstrumentsLM8261M5Texas InstrumentsOPA330AIDBVRTexas InstrumentsTLV2241IDBVTTexas Instruments
